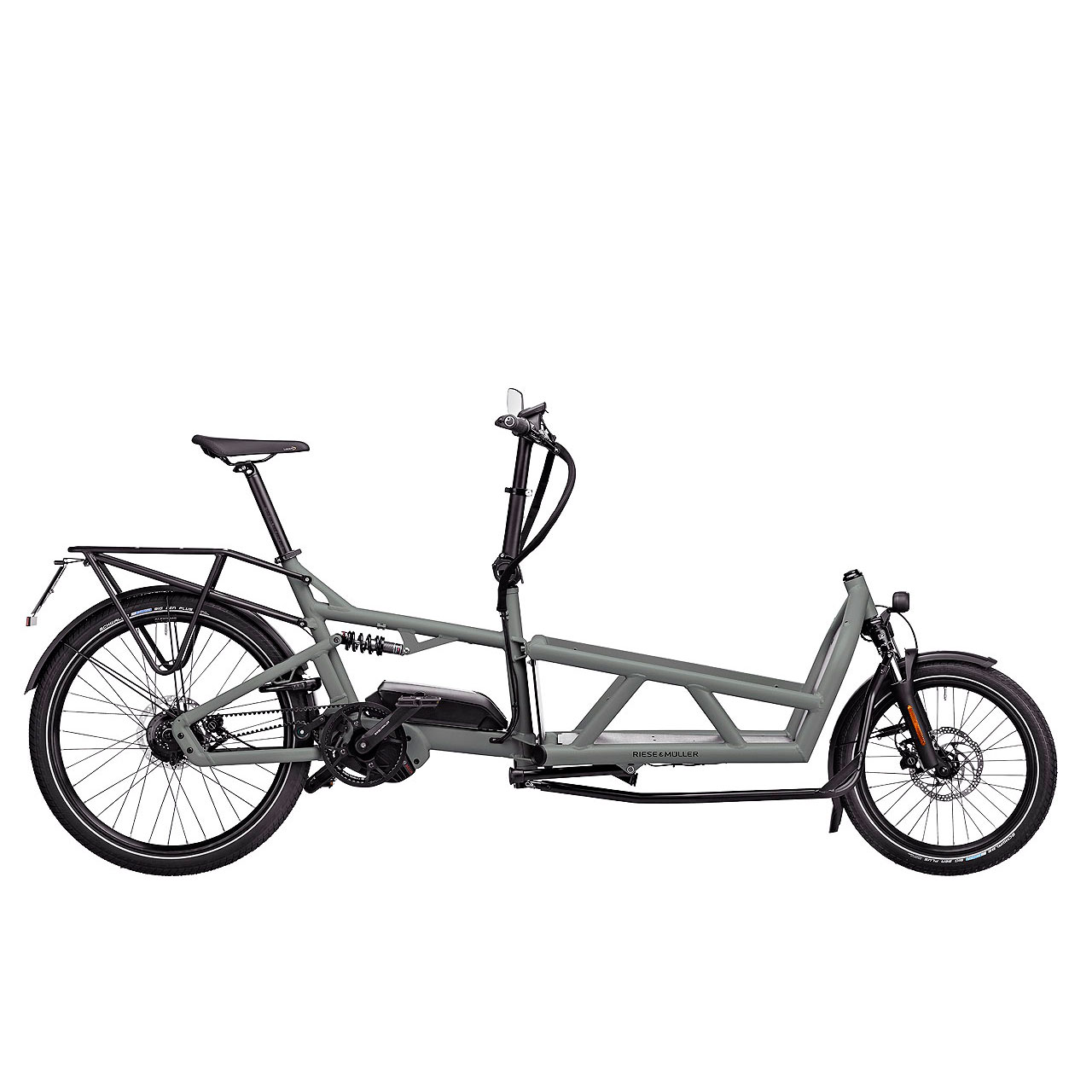

Riese & Muller Load 60 Rohloff HS in Coal Grey Matt

Riese & Muller

Riese & Muller Load 60 Rohloff HS

Base Price: £8,539.00
Now: £6,900.00

Autumn SALE now on!

In Stock
(0) Write a Review

This product is "Made to order" please contact us for a build time.

Selected Frame colour is
Adding to cart… The item has been added

Get 30 Days FREE Bicycle Insurance

Learn More

This Rohloff model comes fitted with:

  • Motor: Bosch Performance Line Speed

  • Battery: Bosch PowerPack 500 Wh Upgrade available

  • Gears: Rohloff E-14 Speedhub 500/14, 14-speed hub gear, belt drive

  • Weight from 37,9 kg / 83,6 lbs

Cargo Accessories

laod60-high-side-walls-with-tarp

High sidewalls with tarpaulin

High sidewalls can be used for securely transporting larger loads. The strong tarpaulin conceals your cargo and protects it from dirt and rain. When it's not needed, simply roll it up and lock it at the front.

laod60-low-side-walls

Low Sidewalls

A simple low side wall configuration for easy laoding and unloading.

load60-glove-compartment

Glove compartment

The glove box built into the cargo area provides space for smaller items. When open, the flap of the box can be locked to create a luggage compartment in which bags or shopping will not move around when you’re riding. A spray guard below the glove box keeps your shoes dry when you’re riding.

laod60-high-side-walls-with-hard-cover

High sidewalls with hard cover

The high sidewalls with hard cover are ideal for protecting larger loads during transport. Lockable and firmly bolted in place, the cover reliably secures your transport goods. It can be locked in a partially opened position and two comfortable, separate seats can be fitted in the storage space for optionally transporting children.

laod60-high-side-walls-with-child-cover

High sidewalls with child cover

High sidewalls provide the best possible protection for your precious cargo. The practical cover protects them from stones, dirt and rain and can be opened at the sides in summer for an optimum, cooling supply of fresh air.

laod60-low-side-walls-with-child-cover

Low sidewalls with child cover

Children can easily get to their seat with low sidewalls – and yet are still well protected on the road. The practical cover protects them from stones, dirt and rain and can be opened at the sides in summer for an optimum, cooling supply of fresh air.

laod60-two-child-seats-with-footwell

Two child seats with footwell

Two comfortable height-adjustable child seats with adjustable sitting and sleeping positions for two children age seven or younger. The seats can also be fitted individually and centrally. Padded 5-point belts guarantee excellent safety for your children, while the footwell provides plenty of comfort. The lid of the footwell can be fixed in a half-open position so that a cargo compartment is created in which bags or shopping cannot slide during travel, while there is still enough room for the kid's feet. If no kids are riding along, the footwell can be completely closed and used as a glove compartment. Equipment available only in conjunction with sidewalls. Please observe national regulations for the transport of children on bikes before using.

Specifications

The Load 60 rohloff HS in detail

Frame colour coal grey matt*; tundra grey matt*
Suspension fork SR Suntour Mobie A32, 20", 50mm
Rear shock X-Fusion Glyde
Headset Acros AZX-221, block lock; TH No. 9, semi-integrated
Seatpost JD/Riese & Müller, Alu, 34,9 x 430mm
Seatclamp TranzX, 40,0 mm, QR
Tires Schwalbe Big Ben Plus 55-406 Reflex; Schwalbe Big Ben Plus 55-559 Reflex; Reifen 20" SmartSamPlus 60-406 ECE-R75*; Schwalbe Smart Sam Plus 57-559 Reflex*
Tubes Schwalbe AV13; Schwalbe AV7
Rims Mach1 Trucky30 20" CNC; Mach1 Trucky30 26" CNC
Spokes Sapim Leader 2,0 mm, Inox, black ( 36x )
Front hub Novatec Disc 32H
Rear hub Rohloff Speedhub E14, 14-speed, 36H
Battery Bosch PowerPack 500 Performance, 36 V, 13,4 Ah/500Wh ( 2x )
Motor Cargo Line Speed (Gen4)
Display Bosch Intuvia; Bosch Nyon*
Crankset Riese & Müller, 170mm
Chain ring 55T, for Gates drive belt CDX
Chain guard Riemenschutzring
Chain Gates drive belt CDX
Pinion 19T, for Gates drive belt CDX
Saddle Selle Royal New Lookin Male Eco
Pedals VP R&M Custom
Shifter Rohloff E14 electronic shifter
Handlebar FSA V-Drive, 31,8 mm, Alu
Stem Riese & Müller, adjustable height and angle
Grips Ergon ergonomic
Brakes Tektro TRP C 2.3 disc brake
Front light Supernova M99 Mini Pro-45
Tail light Supernova M99, integrated plate illumination and brake light; Supernova M99, integrated brake light*
Mudguards SKS A65R
Luggage rack Riese & Müller
Rubber Bibia
Horn Supernova horn
Kickstand Kickstand Riese & Müller
Lock ABUS Shield X+*
Mirror Busch & Müller Cycle Star; Humpert ergotec M-99 E4, CNC*
RX Hardware RX Chip (für RX Services)*

The specification table indicates all available components for this model – not just the basic equipment. Some of the options listed are only available for a surcharge. For more information, see the Configurator. Riese & Müller reserves the right to make technical modifications as well as changes to the shape, colour and/or weight within reasonable limits.

* May differ depending on the availability in your country, design or configuration of the model.
